Calibration Solution Loading Rig (CSLR™)

Calibration solution loading rigMarkes’ Calibration Solution Loading Rig (CSLR) has been specifically designed for loading sorbent tubes with gas- or liquid-phase standards. It has a flow-path constructed of stainless steel and consists of an unheated injector port with a controlled carrier gas supply. The sampling end of a packed sorbent tube is connected to the CSLR by a ¼-inch brass nut and PTFE ferrule.

The carrier gas flow is adjusted using a needle valve, and is normally set between 50 and 100 mL/min. The calibration standard (gas or liquid phase) is introduced through the injector septum using a precision syringe, and onto the sampling end of the attached tube.

See our videos on how to How to introduce gas standards to complement liquid standards using the CSLR and How to introduce standards to sorbent tubes using the CSLR.

Advice on routine calibration of TD methods is given in Markes’ Application Notes 007 and 075

SKUDescription

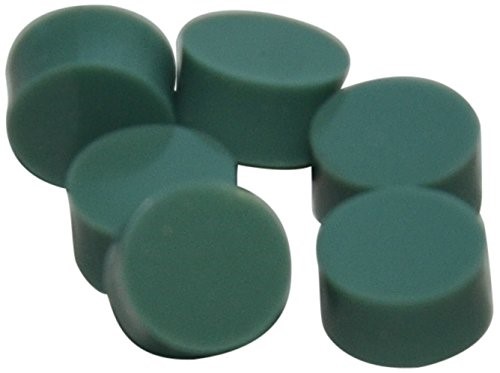

C-SPTA Septum, 9.5mm (for CSLR), pk 10 Call us for pricing or contact your local distributor
C1-BXXX-5072 Tube, glass, Tenax TA, 1 cm, calibration, pk 10 Call us for pricing or contact your local distributor
C-CSLR Calibration solution loading rig Call us for pricing or contact your local distributor
C1-BAXX-5072 Tube, glass, Tenax TA, 1 cm calibration, conditioned and capped, pk 10 Call us for pricing or contact your local distributor

Gallery Images

CSLR
Click on an image for a larger view.
